GEIS® – General Examination Camera HD
Capturing clear and precise high-quality medical images has never been easier on this handheld device
The Visionflex GEIS® General Examination Camera (General Examination Imaging System) is a handheld device that can capture medical grade quality images and video in full HD 1080p resolution at the touch of a button. This easy-to-use medical imaging device allows its operator to perform a wide range of examinations, whilst its automatic or manual focus captures clear and crisp visuals every time.
Together with the Visionflex ProEX Telehealth Hub, the GEIS® Camera enables healthcare professionals to assess a patient from any remote location. This multi-purpose examination camera was developed specifically for telehealth applications, to capture and display full HD video and images of a patient encounter.
Clever design and easy to use medical imaging camera
With its light-weight, ergonomic design and 5 control buttons, the GEIS® General Examination Camera offers auto or manual focus, LED illumination control and image capture all in one small, single-hand operated camera.

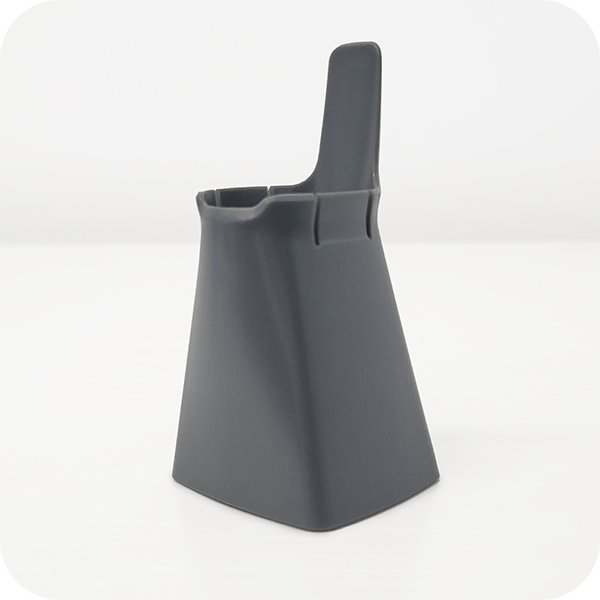

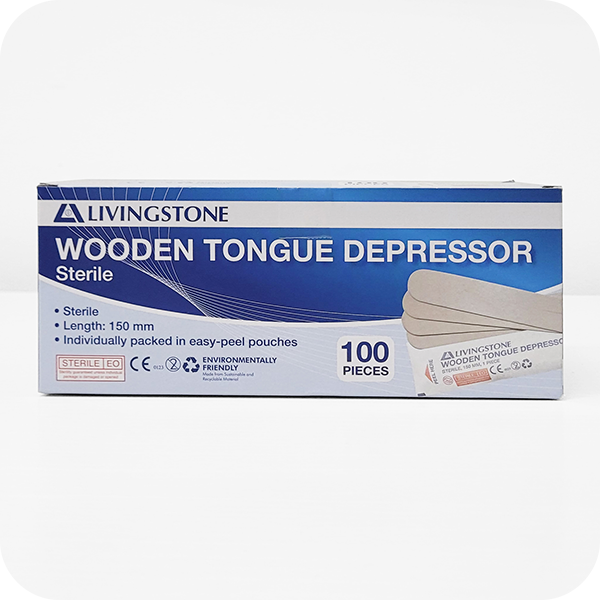

A range of accessories are available for the camera including a Dermatology Hood, Tongue Depressor attachment and a Wound Management adaptor.
GEIS® – General Examination Camera HD Product Details
|Image resolution||Full HD 1080p, 1920×1080|
|Frames per second||Up to 30f/s|
|Interface||USB 2.0 type A connector. Hi-speed 480Mbps using UVC commands|
|Control buttons||Capture image, focus (+ & -), LED brightness 4 steps (high to off)|
|Focal range||5cm – 3m approximately|
|Illumination||8 x high intensity white LEDs (5700K)|
|Colour adjustment||Integrated auto white balance|
|Docking station||Switches off LEDs & video when placed in the docking station|
|Mounting||Wall or desk mount|
|Power source||USB 2.0 compliant: 5v DC, 500mA|
|Power consumption||Less than 2.5W (nominally 2.1W)|
|Dimensions||136 mm x 37 mm x 32 mm, 88g (without cable)|

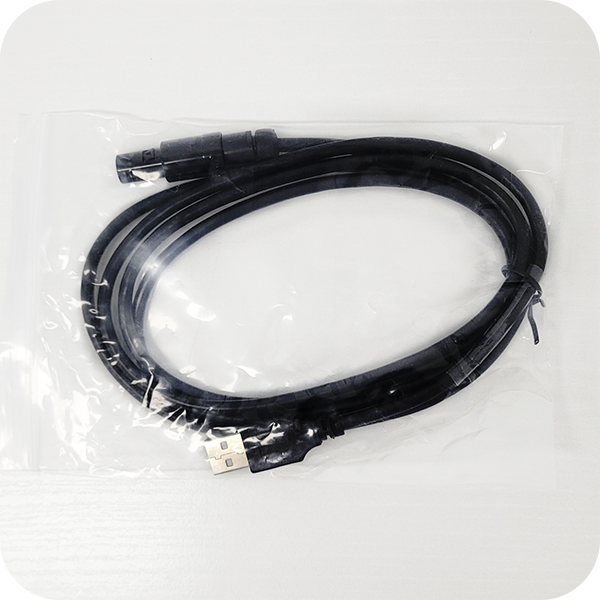

|Cable length||1.5 metres|
|Environmental storage||0°C to +60°C, operating: +5°C to +30°C|
- Lightweight, ergonomic design
- Full HD 1080p resolution
- High intensity LED illumination
- Adjustable LED brightness with 4 steps
- Auto or manual focus for sharp images
- Single button snapshot
- Teleconferencing ready
- No drivers required for USB2 interface (UVC output)
- IP54 water/dust rating
Australian TGA , Health Canada and US FDA listed
follows the provisions of the Council Directive MDD 93/42/EEC
Qualified to IEC 60601 1:2005 (Third Edition) + CORR. 1:2006 + CORR. 2:2007 + A1:2012 (or IEC 60601-1: 2012 reprint), EN 60601-1:2006 + A1:2013 + A11:2011 + A12:2014, ANSI/AAMI ES60601-1: 2005 / A1:2012, CAN/CSA-C22.2 No. 60601-1:14
EMC Collateral standard IEC 60601-1-2
